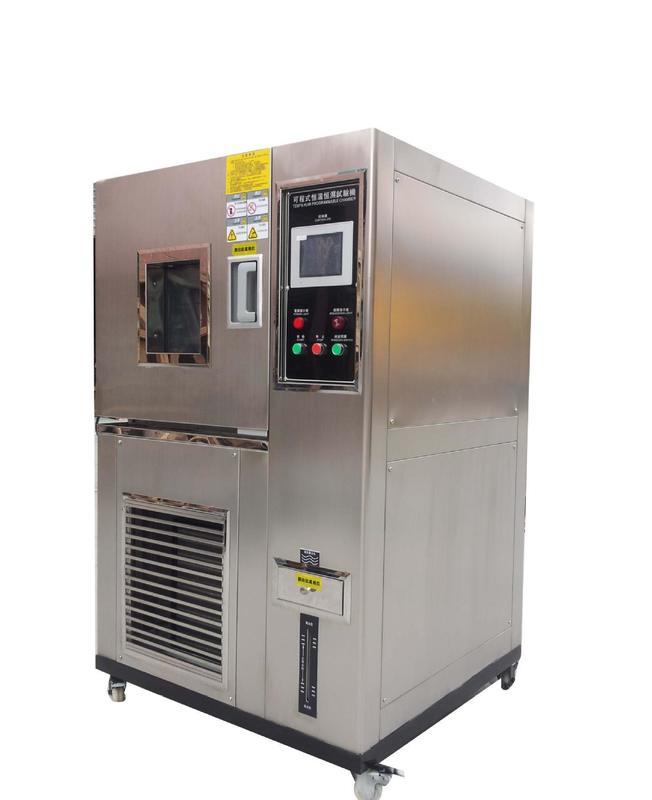

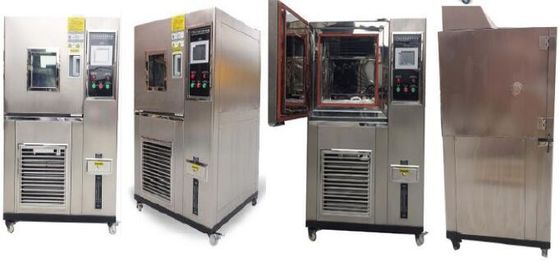

Programmable fabric moisture permeability test chamber

Part 1: An overview of the system components and their uses

1. The system consists of the following components:

The function of the test chamber is to provide a test environment such as high and low temperature constant, high and low temperature alternating;

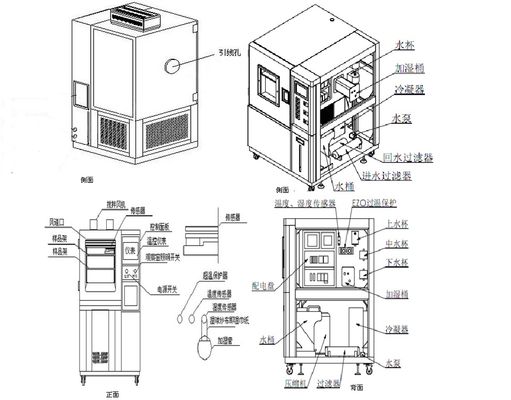

It is composed of refrigeration system, heating system, air duct system, control system, system safety protection device, etc

2. The purpose of the test chamber:

Fabric moisture permeability test chamber is used to test the performance of materials in various environments and test the heat resistance, cold resistance, dry resistance and moisture resistance of various materials, which is suitable for the determination of moisture permeability of various fabrics, including moisture permeable coated fabrics.

Part 2: The main technical indicators of the test chamber

1. Workroom size:500×500×600mm

2. Demensions:970×1050×1750mm

3. Temperature range:-0℃ ~ +150℃ (When there is no load and is in a constant state)

4. Temperature fluctuation: ≤±0.5℃ (When there is no load and is in a constant state)

5. Temperature uniformity: ≤1℃ (When there is no load and is in a constant state)

6. Cooling rate:From room temperature to 150°C, about 45 minutes (20°C~100°C range, no load, the whole process of nonlinear heating

7. Wind speed: 1.7 ~ 2.5m/s

The above indexes were measured at ambient temperature ≤25°C, atmospheric pressure, no-load, no-load conditions, and 1/6 space from the inner wall of the box

 8. Power: Approx. 4.5Kw

 9. Airflow velocity range: 0.02~3m/s

10.Power supply: 220V±10%V;50Hz

11. Moisture permeable area: 3000mm2 (ASTME96 standard) 6pcs

12. Humidification capacity: ≥250mL/h

13. Humidity range:

20%~98%R.H(AT+25℃~+85℃)98%RH(There is no heat source during the damp heat test)

14. Humidity error:≤+2~-3.0%RH (humidity >75%RH) (at constant state)

≤±5.0%RH (humidity ≤75%RH) (at constant state)

Main unit and accessories and testing software:

Product Certificate 1pc

Instruction manual for the product 1set

Warranty card 1set

Thermometer 1

Power cord 1

Conditions of use of the device :Humidify with water:Purified water, distilled water, deionized water, resistivity ≥ 500.m

Cooling method: Air cooling method: ambient temperature +5~+28°C is the best

Voltage: AC 220V±10%, 50 Hz, three-phase four-wire + ground wire

Ambient temperature:0~40℃

Ambient humidity: < 85%R.H

Atmospheric pressure :86~106Kpa.

Site Requirements: The equipment should be placed horizontally in a well-ventilated test room, with sufficient space around it for operation and maintenance

Spatial conditions:The test chamber should be at least 200mm away from the room around the room, and the equipment should be open and closed normally

Environmental conditions: There is no strong vibration, no strong electromagnetic field interference, no high concentration of dust and corrosive substances, no direct sunlight or other direct radiation from heat sources around the equipment site

Frequency and error: 50±0.5Hz

Voltage and error: AC 220V±10%V

Master switch :A separate space is required

Part3. Details of the core components

Control panel

 TEMI850 controller features

1. Color touch screen

2. Two control modes (fixed value/program)

3. Sensor type: PT100 sensor

4. Output mode: PID control output; (4-20mA) analog output;

(1-5V)/(0-10V) can be arbitrarily selected, 8 switch signal auxiliary input; (Basic configuration of 10 relays, optional 20 relays) ON/OFF relay output;

5. Temperature measurement range: -90.00°C--200.00°C, (optional -90.00°C--300.00°C) error ±0.2°C;

6. Humidity measurement range: 1.0%--100%RH, error ±1%RH;

7. Measurement range: can be set arbitrarily, and special functions can be customized;

8. Program editing: 12 groups of programs can be programmed, and each group of programs can be programmed up to 10 segments, and can be set to run in cycles;

9. Communication interface: (RS232/RS485, the longest communication distance is 1.2km [optical fiber can reach 30km]);

10. Interface language color touch screen language type: Chinese/English

11. TFT resolution: 800×480 64K color

Stainless steel heating element

Advantages of stainless steel finned electric heating tubes:

Compared with ordinary heating tubes, the finned tubular heating tube has the following advantages, the heat dissipation area of the finned tubular heating tube is increased by 2.5~4 times compared with the ordinary light pipe, and the surface load is increased by 2~3 times compared with the light pipe, and the heat loss of the heat sink electric heating device is reduced due to the shortening of the length of the heat sink electric heating device. Under the same power conditions as the fluorescent tube, it has the advantages of fast heating, high thermal efficiency and long service life. In the limited heating device, it can accommodate the total power of 2~3 times the capacity of the superluminous tube, which greatly reduces the volume of the heating device and saves the user's cost

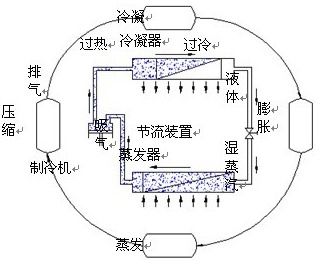

Environmentally friendly refrigerant

Physical Properties: (1) Composition: R-125/143A/134A:

(2) Mass ratio of each component: 44/52/4

(3) Molecular weight: 97.6:

         (4) Boiling point: 101.3kpa°C-46.2

(5) Critical temperature °C: 72.16

(6) Critical pressure: KPA 3728

    (7) Saturated liquid density: 25°CKg/m³1044

(8) Specific heat: 25°CKj/(kg.k)1.54

(9) Ozone depletion potential (ODP): 0

(10) Specific heat of isobaric vapor: (Cp), 30 °C and 101.3kPa[KJ/(Kg·°C)] 0.21 (11) Evaporation potential at boiling point: KJ/Kg 200.1

Please consult us for more details!

After-sales service :

1. We guarantee that the goods fully comply with the quality, specifications and performance requirements stipulated in the contract;

2. Before delivery, we will conduct accurate and comprehensive testing of the products; Packing according to your requirements, pictures are attached before shipment for your confirmation, delivery is made on schedule, and professional shipping documents are provided;

3. We will provide you with quality service immediately, reply within 48 hours after receiving the quality message, and provide appropriate solutions within 3 working days;

4. After acceptance, our engineers will provide professional and technical services free of charge, such as video guidance and teaching, and on-site guidance and teaching if necessary;

5. We provide a 12-month warranty period, and in the event of quality problems during the product warranty period (not caused by human factors), we guarantee to provide free repair, maintenance and replacement of damaged and defective parts services;
